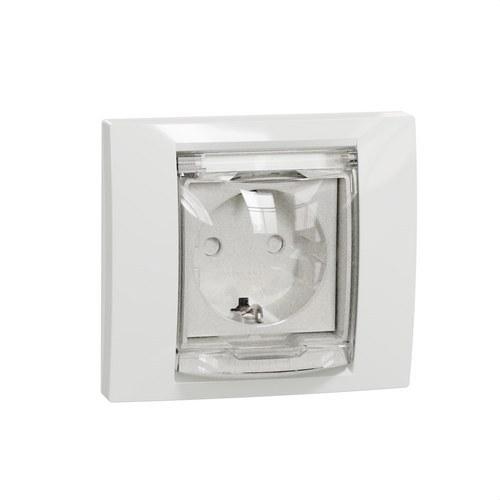

Schuko Socket Base IP44 New Unica Polar

The Schneider Electric New Unica IP44 Schuko socket in polar white, model NU003718, is a reliable and safe solution for electrical installations both indoors and outdoors. This socket is designed to meet the highest safety standards, offering IP44 protection, making it resistant to dust and water splashes, ideal for environments exposed to moisture or for installation in outdoor areas.

This socket features a 2P+E configuration (two poles and earth), compatible with the Schuko (CEE 7/3) standard, widely used in Europe. Its capability to support a rated current of 16 A and an operating voltage of 250 VAC makes it suitable for a wide range of electrical devices, from small appliances to higher consumption tools.

Key Features:

• Rated Current: 16 A
• Operating Voltage: 250 VAC
• Frequency: 50/60 Hz
• Protection Grade: IP44 (resistant to dust and water splashes)
• Number of Modules: 2 (modular design)

This Schuko socket is equipped with a shutter cover, providing an additional level of safety by preventing accidental contact with internal terminals. This system is especially useful in areas with children or in environments where a high level of protection against unwanted tampering is required.

Key Technical Data:

• Mounting: Flush installation, flush-mounted with screws for greater stability
• Connections: Screw terminals, compatible with rigid or flexible cables up to 4 mm²
• Electrical Durability: 10,000 cycles (cos phi = 0.8)
• Insulation Resistance: > 5 MΩ at 500 V
• Dielectric Voltage: 2000 V
• Dimensions:
  • Width: 90 mm
  • Height: 80 mm
  • Depth: 52.6 mm
  • Embedded Depth: 30.5 mm
• Material: Polycarbonate (PC) with a satin finish for enhanced durability and wear resistance

The socket is constructed with high-quality materials, such as CuZn15 terminals and a polycarbonate housing offering excellent resistance to impacts and adverse environmental conditions. These materials not only ensure the durability of the socket but also make it resistant to a variety of common chemical agents, such as alcohol, diluted ammonia, soapy water, and hydrogen peroxide.

Additional Features:

• Ease of Installation: Thanks to its modular design and screw fastening system, this socket can be easily installed in any standard frame or mechanism box. Screw connections ensure a quick and secure installation.
• Chemical Resistance: This socket is resistant to a wide range of chemical products, making it suitable for use in environments where these products may be present, such as kitchens, laboratories, or maintenance areas.

Typical Applications:

The New Unica IP44 Schuko socket is ideal for installation in areas requiring additional protection against dust and moisture, such as kitchens, bathrooms, basements, garages, gardens, and outdoor areas. It is also perfect for use in light commercial and industrial applications, where a safe and reliable power supply is needed.
